De HAVILLAND DH84 DRAGON

$9.95

Title: De Havilland DH84 Dragon

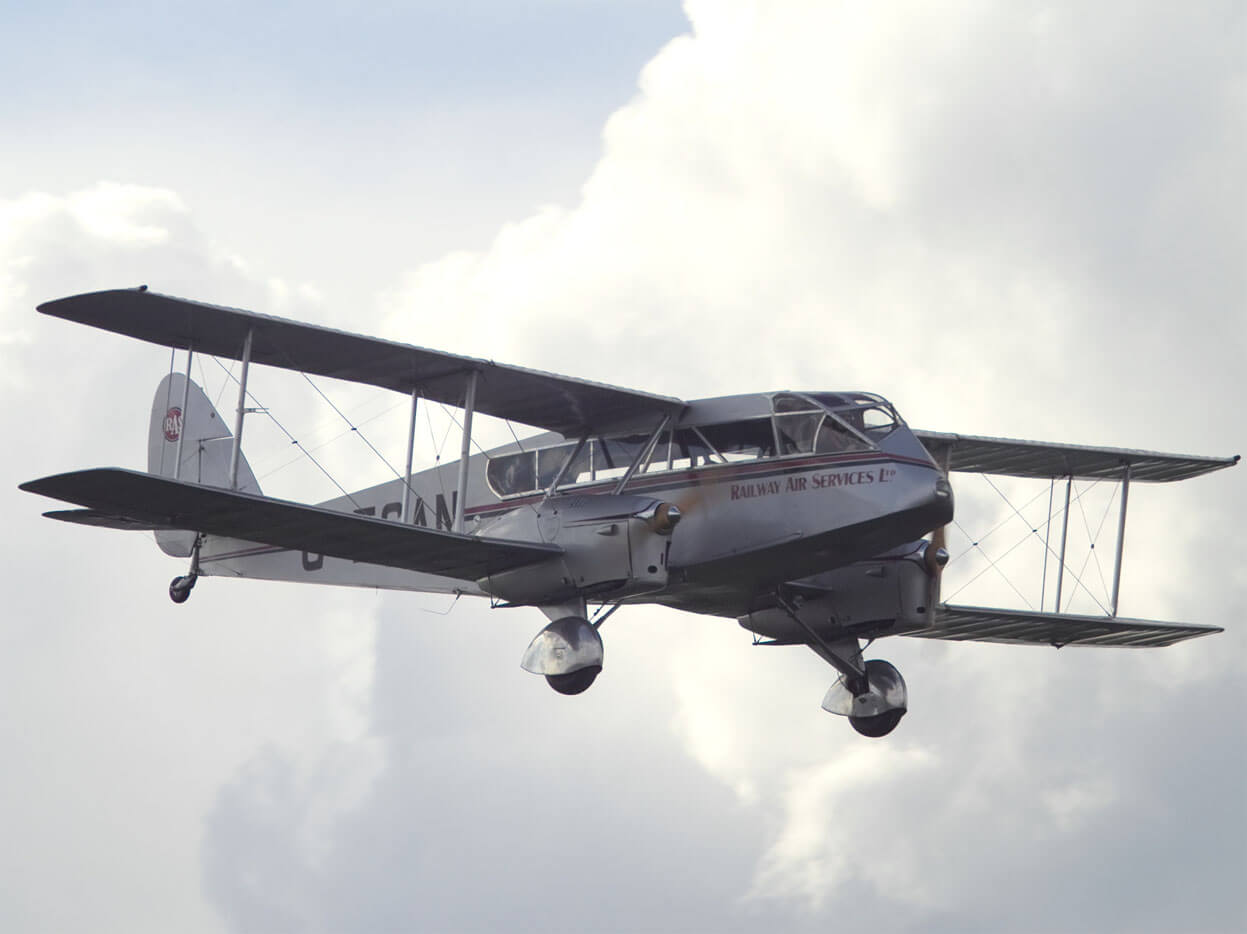

The De Havilland DH84 was a twin-engined larger version of the earlier DH83 Fox Moth and used similar outer wing sections. It first flew in 1932, and 115 had been produced when it was replaced on the De Havilland production line by the more powerful and elegant DH89 Dragon Rapide.

Production re-started in Australia during WW2 as a trainer for the RAAF, it being selected as it used the same engine as the DH82 Tiger Moth, which was also in production in Australia, and a further 87 were built.

This title contains the manufacturers Instruction Manual for the DH84 Dragon plus a manufacturer’s brochure and a NACA descriptive aircraft circular. The files have been scanned from the original flight manuals and retain any colour pages.

Category:

Description

This title contains:

  • Manufacturer’s Manual of Instructions for Operation, Maintenance and Rigging of the De Havilland Dragon (Type DH84), publication D.H.D.IM.1, undated but from the mid 1930’s, with approx. 21 pages of text and 14 fold-out drawings at the back.
  • Manufacturer’s Brochure for the De Havilland Dragon, undated but from the mid 1930’s, with approx. 14 pages.
  • NACA descriptive Aircraft Circular No. 174 covering the “Dragon Moth”, dated January 1933 with approx. 10 pages
