SAAB 35 DRAKEN

$9.95

Titles: Saab 35 Draken No’s 1 to 5

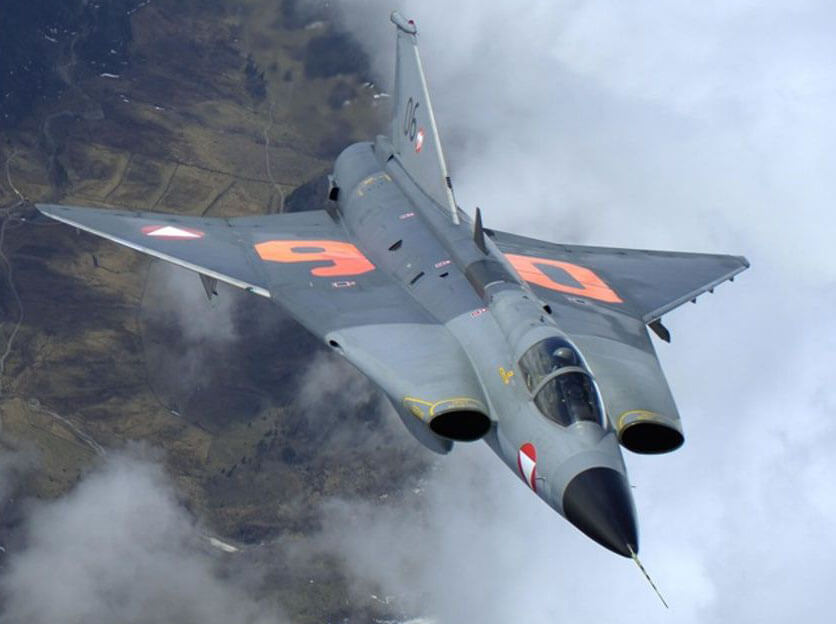

An advanced double-delta the J35 Draken (Dragon) first flew in 1955 and entered service with the Swedish Air Force (Flygvapnet) in 1960. Several variants were produced and it was finally retired from Flygvapnet service in 2000 after 40 years service. Export versions were supplied to Finland, Denmark and Austria but all these have also now been retired. It was Europe’s first supersonic jet aircraft and only Swedish government restrictions prevented wider sales.

We offer five titles for this unique aircraft, covering most variants of the Draken and including manuals in English. Each title is US$9.95. All files have been scanned from the original flight manuals and retain any colour pages.

SKU: N/A Category:

Description

Title 1 contains:

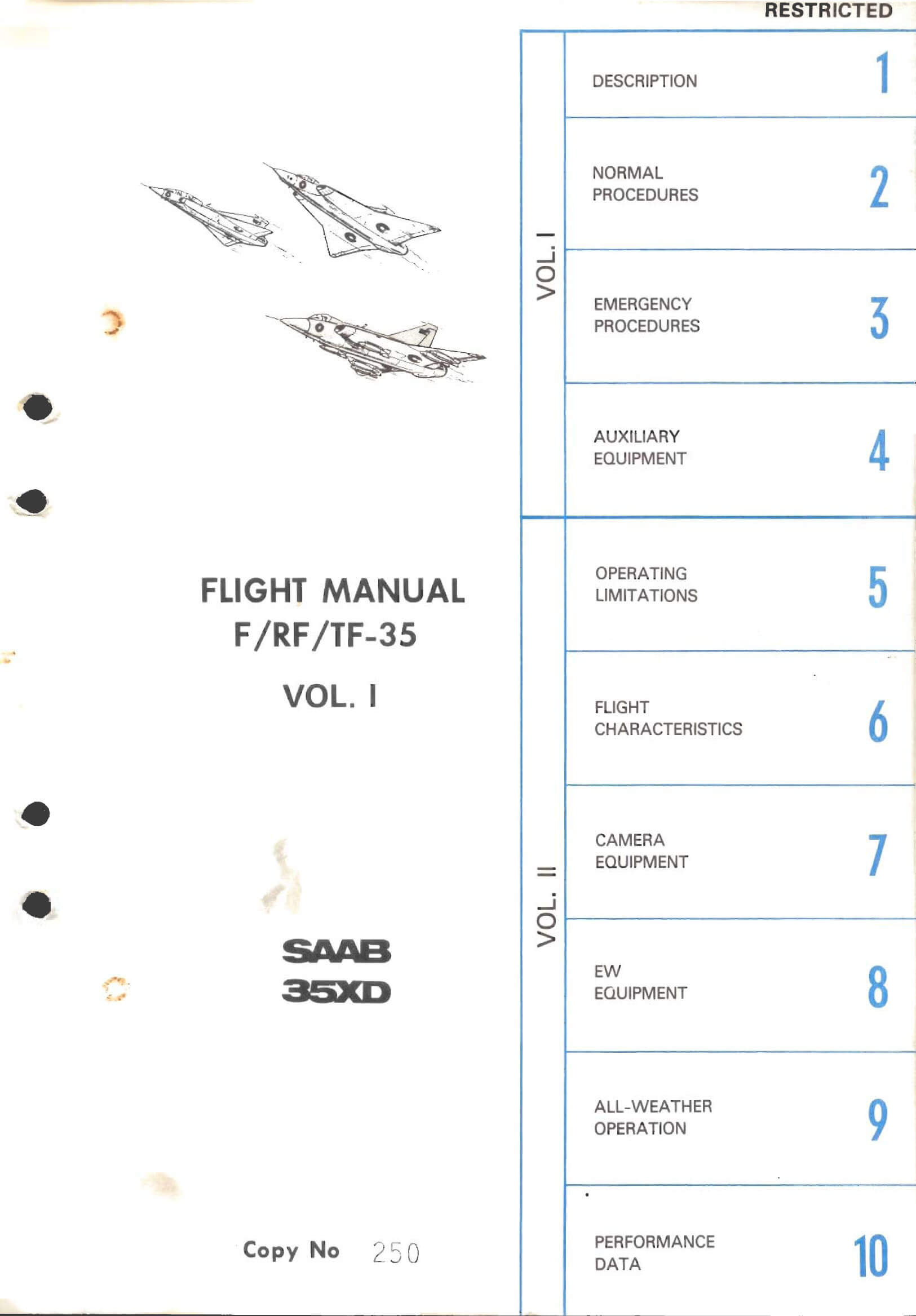

  • Flight Manual for the F/RF/TF variants of the Saab 35XD Draken, as used by the Royal Danish Air Force, Publication HFLV 685-121 dated Jul 71, revised to May 92, with approx. 707 pages. This manual is in English and follows a format very similar to USAF manuals.
  • Manufacturer’s colour brochure for the Draken, dated 1970 with approx. 35 pages. In English.

Title 2 contains:

  • Swedish Air Force (Flygvapnet) Flight Manual (called Speciell Forarinstruktion) for the SK35C, document M5800-350031 in two volumes (in Swedish):

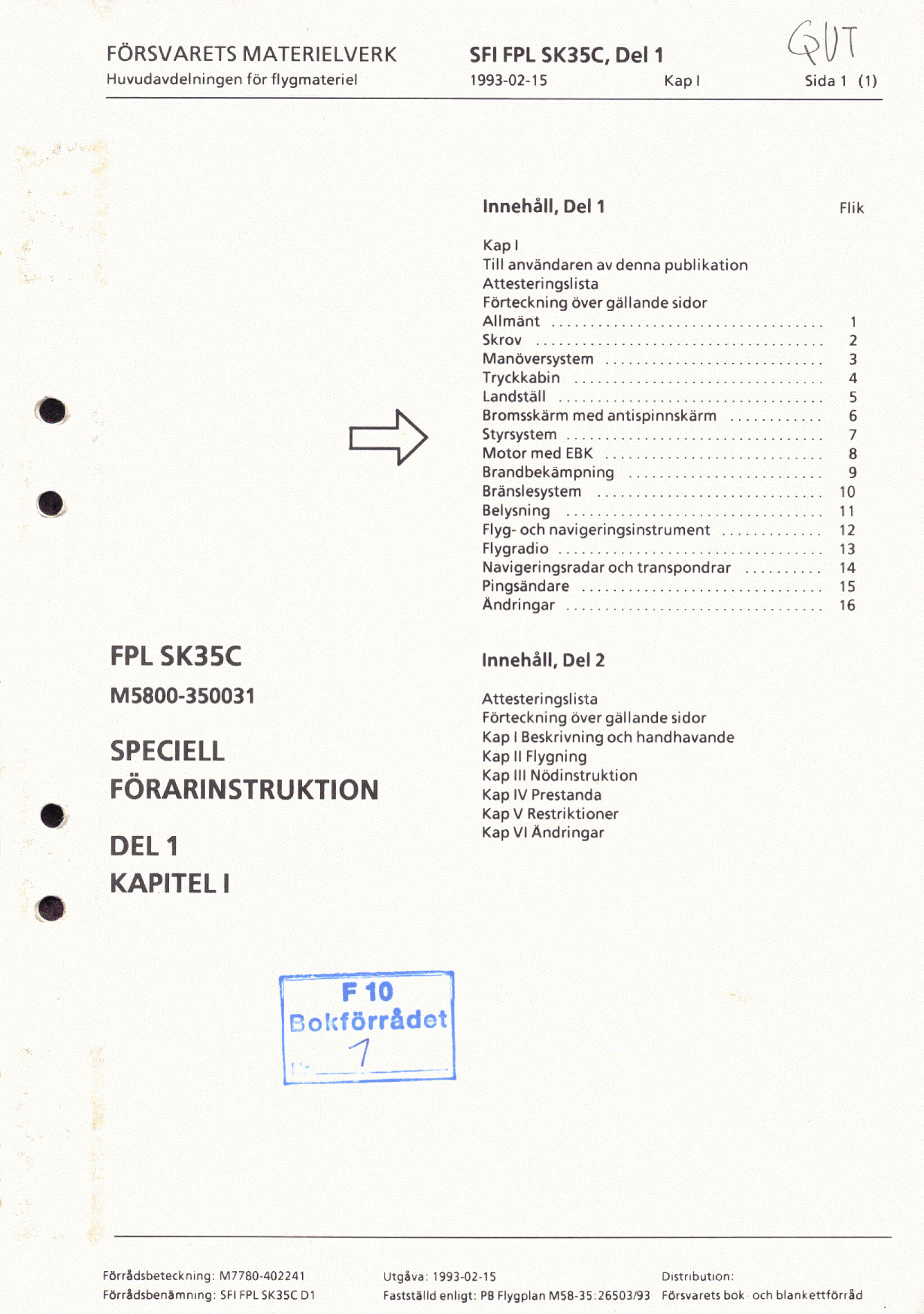

  1. Volume 1 (Del 1) contains the technical description of the aircraft. Dated 15-2-1993 with approx. 200 pages.

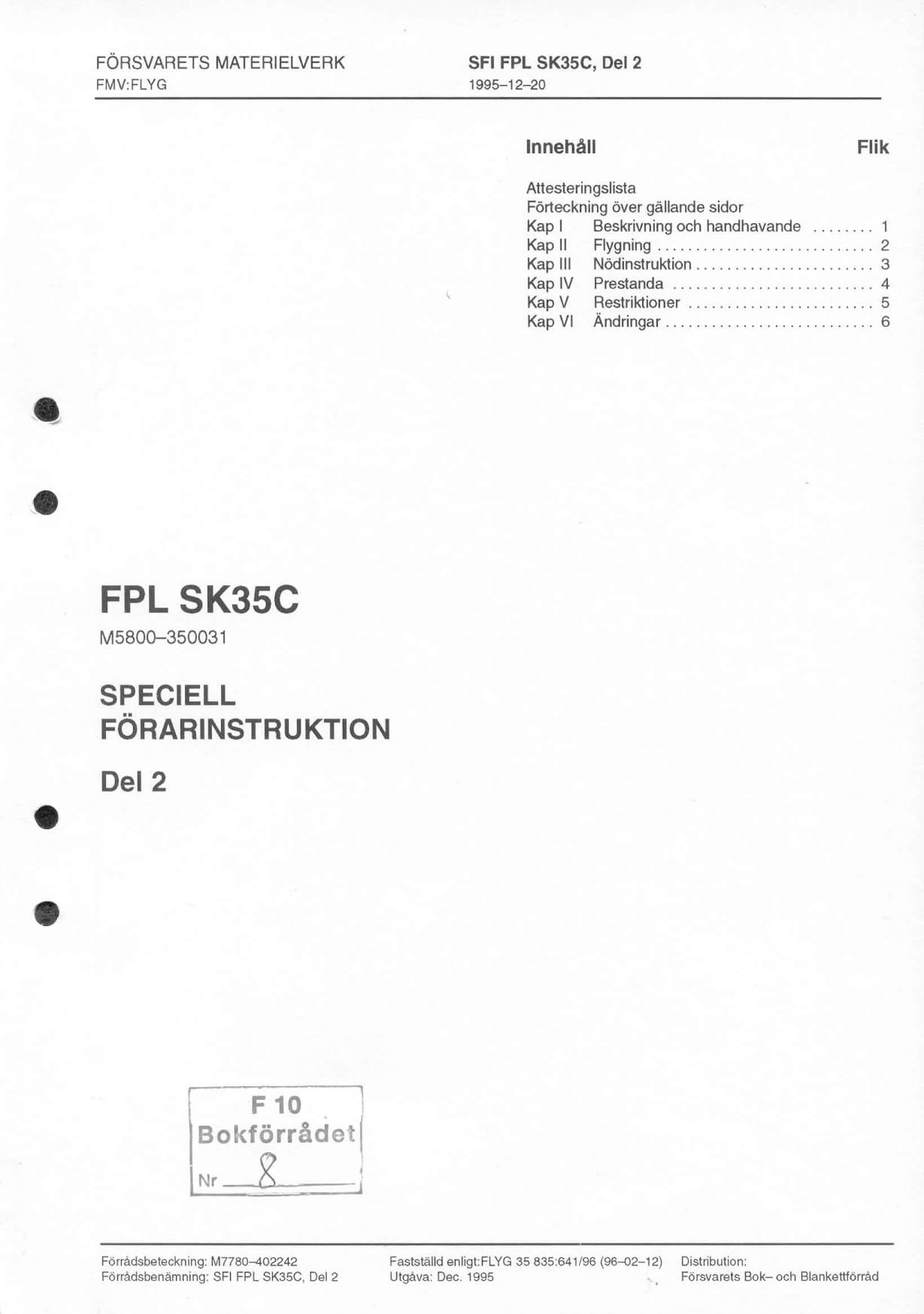

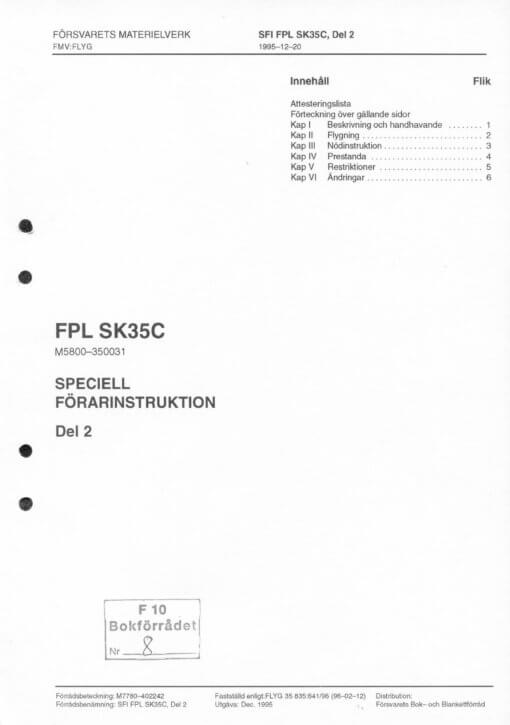

  2. Volume 2 (Del 2) contains normal and emergency procedures, performance and limitations. Dated 20-12-1995 with approx. 124 pages.

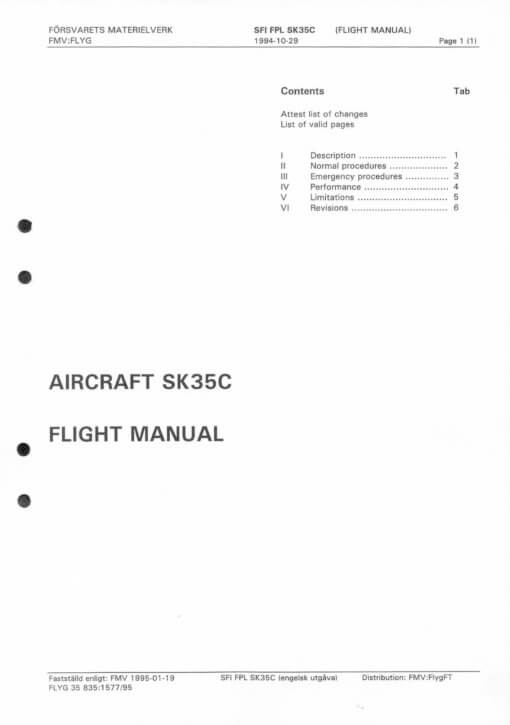

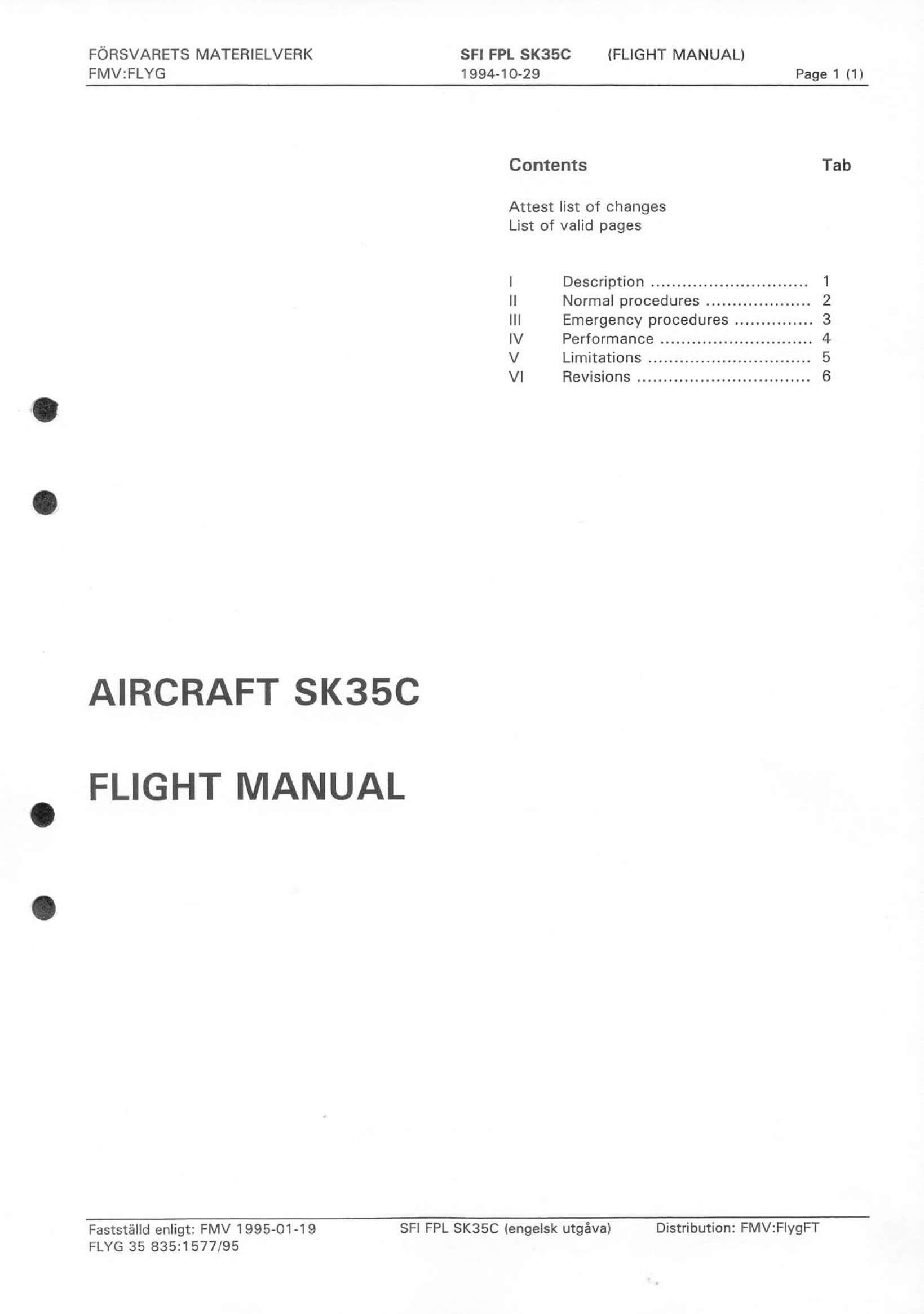

  • For some reason the Swedish produced an English translation of the SK35C flight manual.  Unfortunately we only have the English version of Volume two, but this is included in this title. Dated 29-10-1994 with approx. 122 pages.

Title 3 contains:

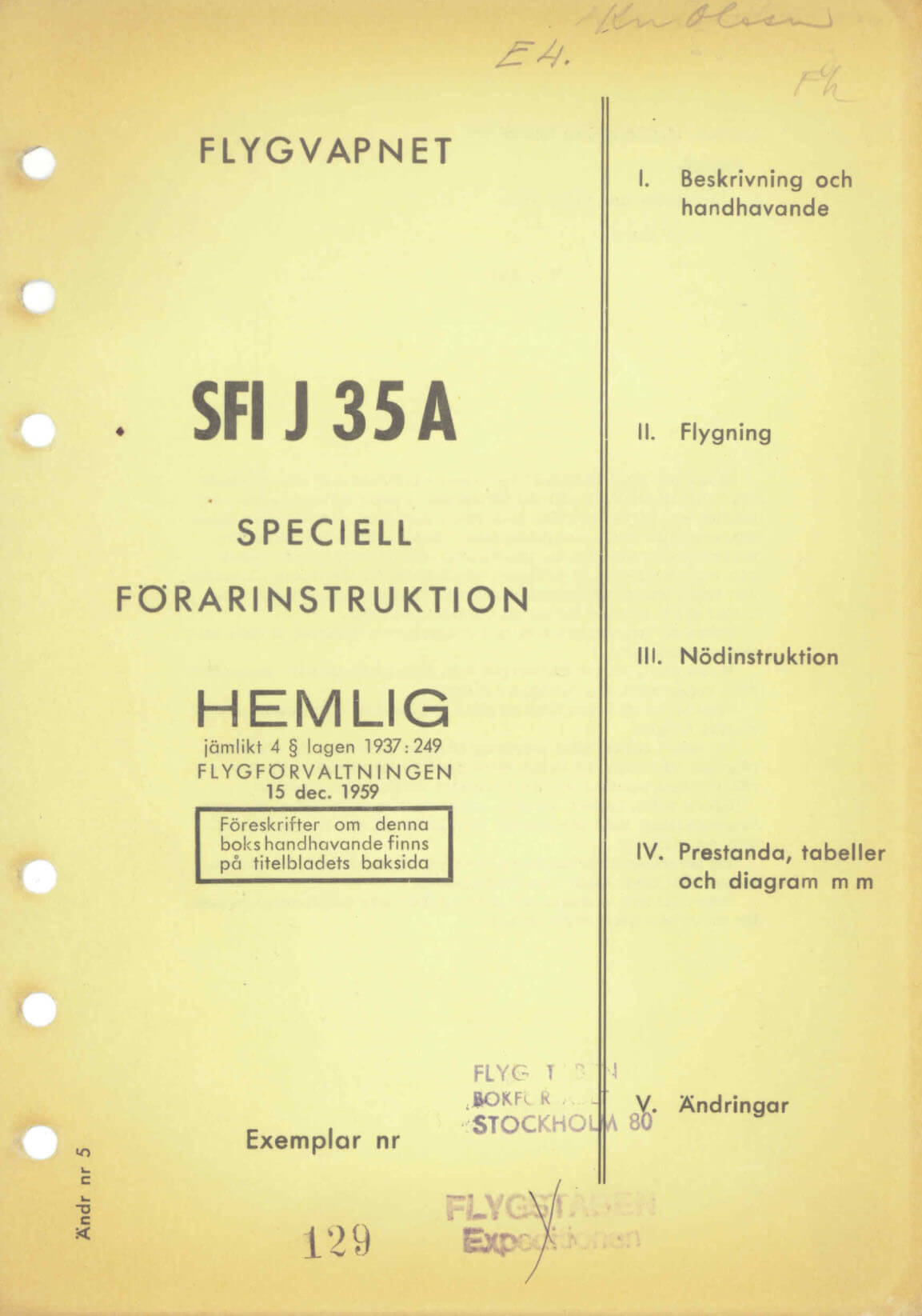

  • Swedish Air Force (Flygvapnet) Speciell Forarinstruktion (Pilot’s Manual) for the Saab J35A, comprising two volumes:

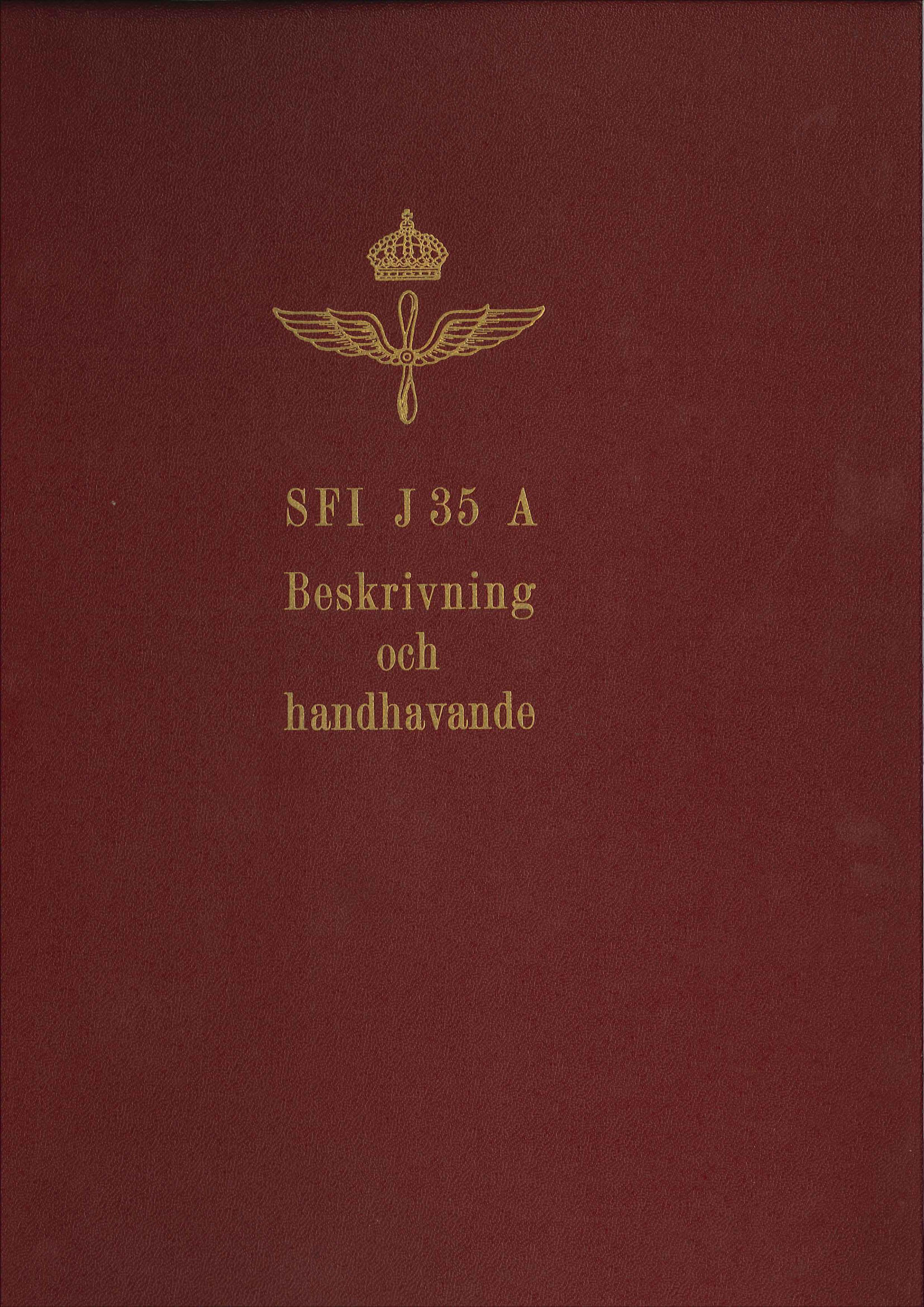

  1. Beskrivning och Handhavande (Description and Operating Manual) – undated with approx. 118 pages.
  2. Speciell Forarinstruktion, (contains the operating procedures and performance), dated 15-12-59 with approx. 176 pages.

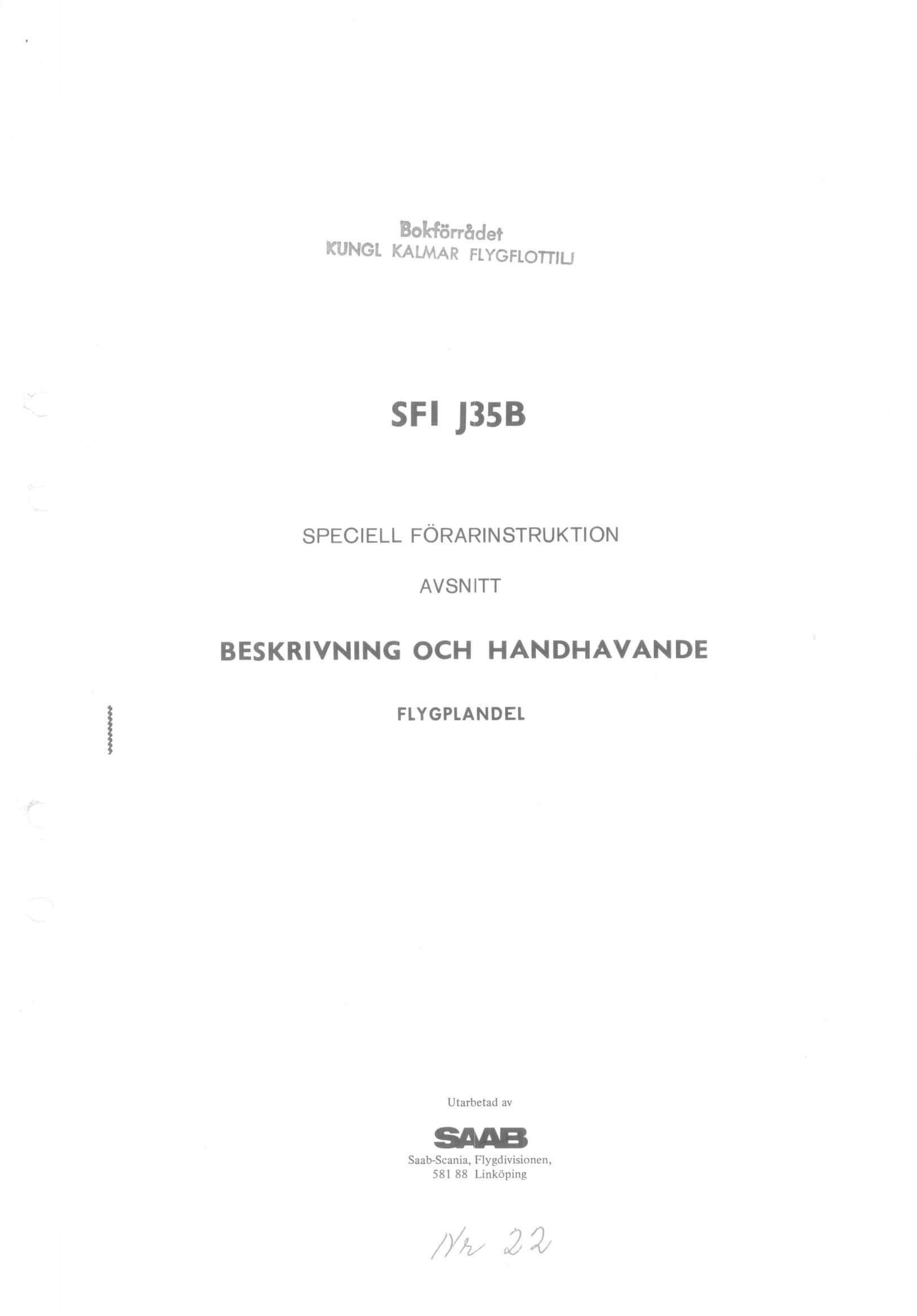

  • Beskrivning och Handhavande for the Saab J35B, undated with approx. 118 pages. (All the above in Swedish.)

Title 4 contains:

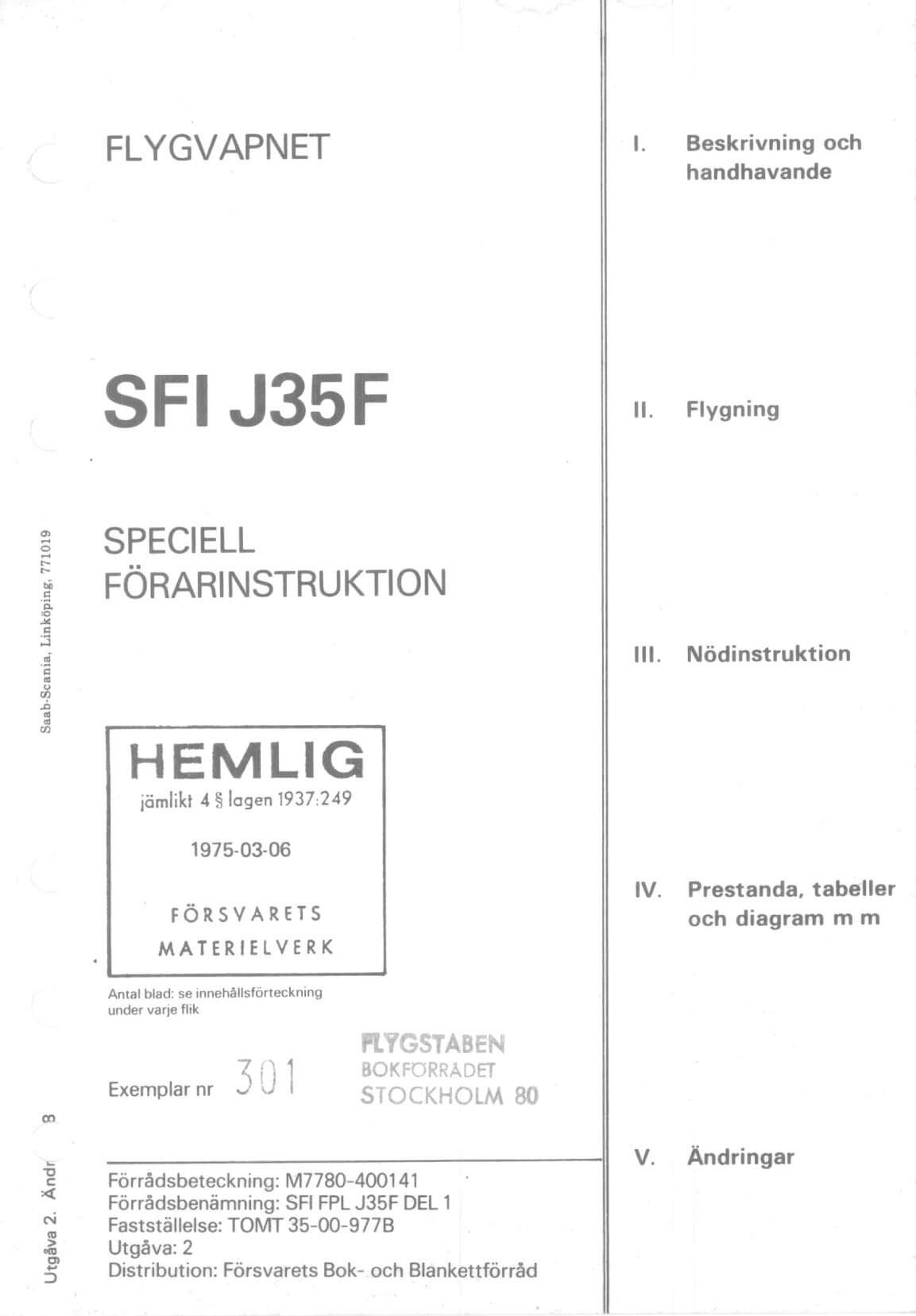

  • Swedish Air Force (Flygvapnet) Speciell Forarinstruktion (Pilot’s Manual) for the Saab J35F, comprising four volumes:
  1. Speciell Forarinstruktion J35F, (contains the operating procedures and performance), dated 12-5-66 with approx. 241 pages.

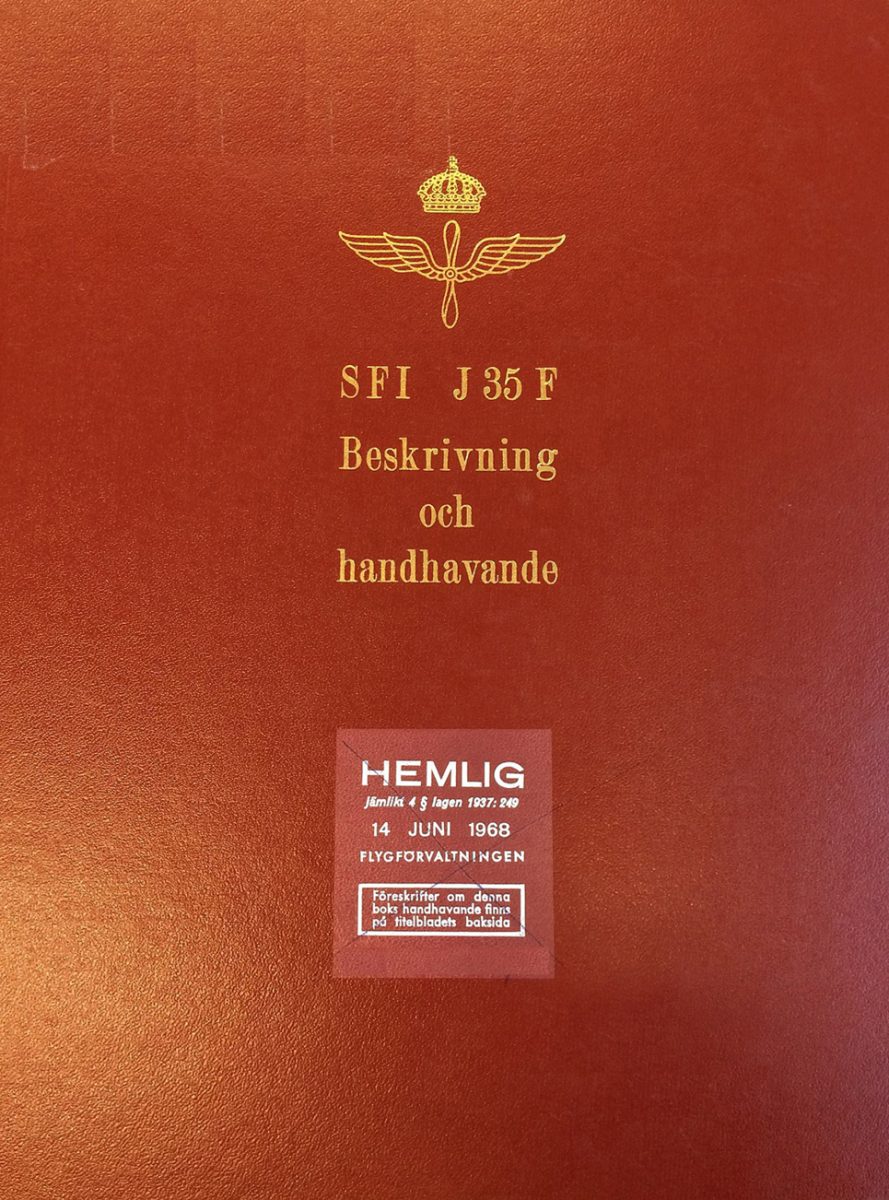

  2. SFI J35F Beskrivning och Handhavande (Description and Operating Manual) Flygplandel – dated 15-6-68 with approx. 124 pages.
  3. SFI J35F Beskrivning och Handhavande Del 3 Systemdel (Weapon system description) dated 15-6-68 with approx. 88 pages.
  4. SFI J35F Del 4 Komplement (contains performance data) dated 9-4-68 with approx. 133 pages. (All in Swedish. The last two have been compiled from photographs taken by a third party.  Not to our usual standard but included due to their rarity.)

Title 5 contains:

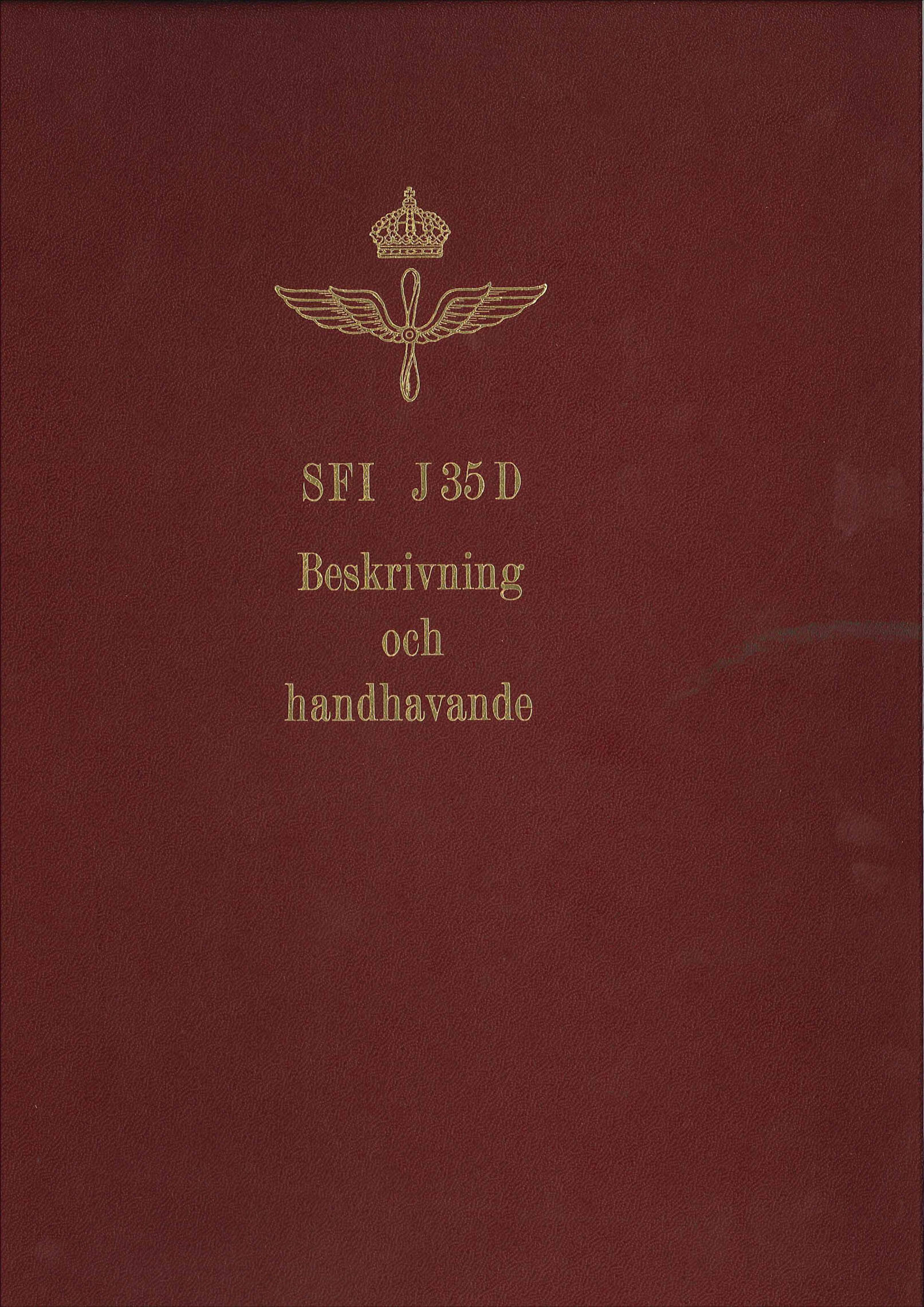

  • Beskrivning och Handhavande for the Saab J35D, undated with approx. 128 pages. In Swedish.

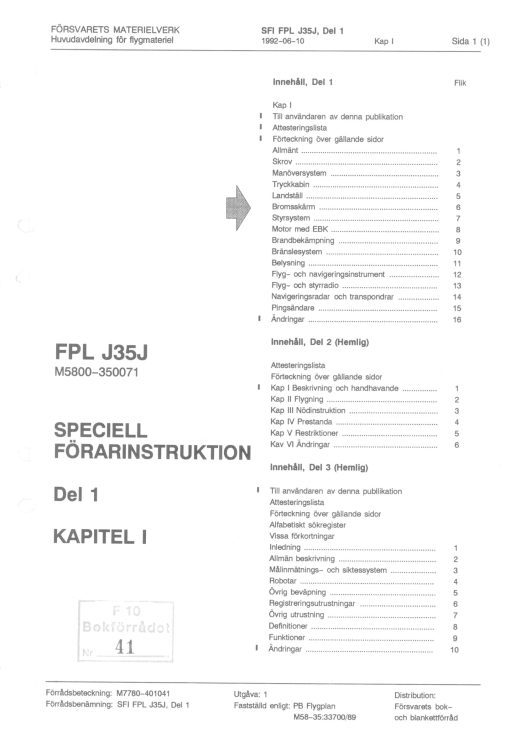

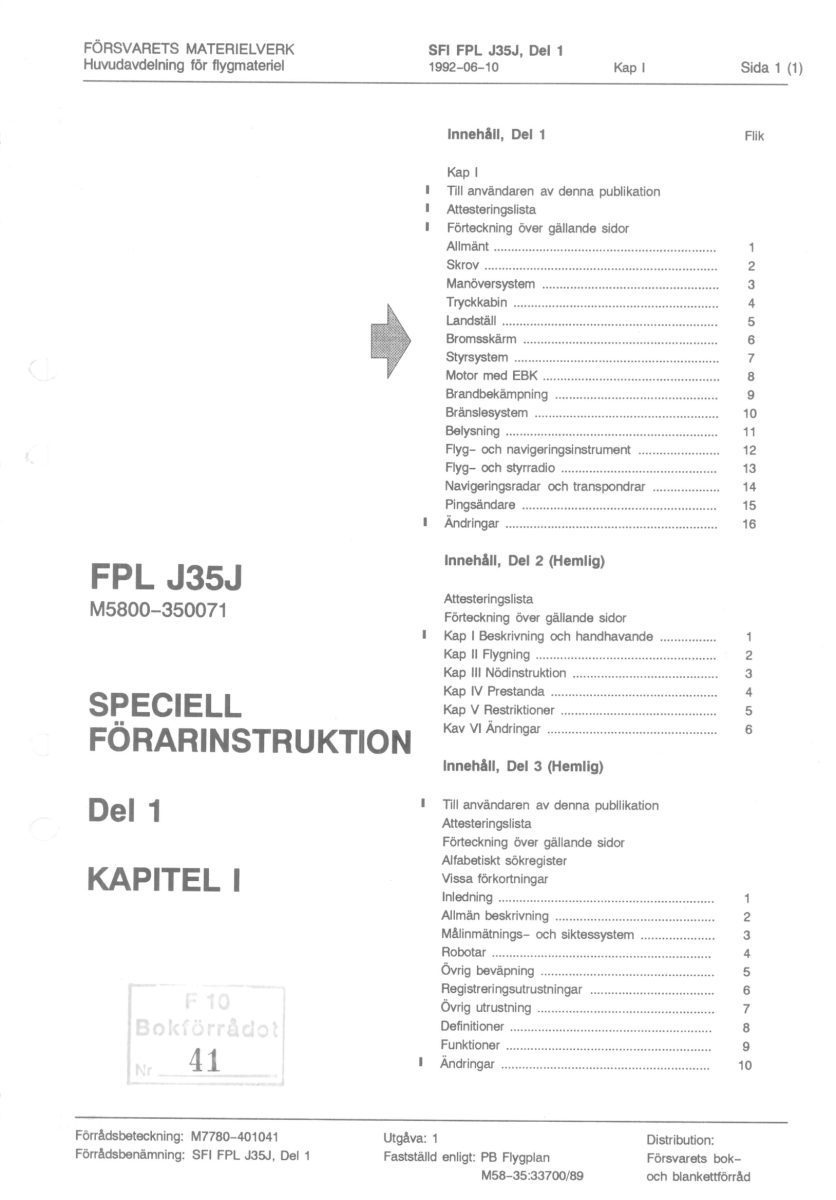

  • Speciell Forarinstruktion Del 1, (contains the technical description) for the J35J, document M5800-350071 dated 06-10-1992 with approx. 244 pages. In Swedish.
  • Manufacturer’s colour brochure for the “Draken Weapon System”, dated 1963 with approx. 35 pages.In English.
