Title:  Heinkel He70

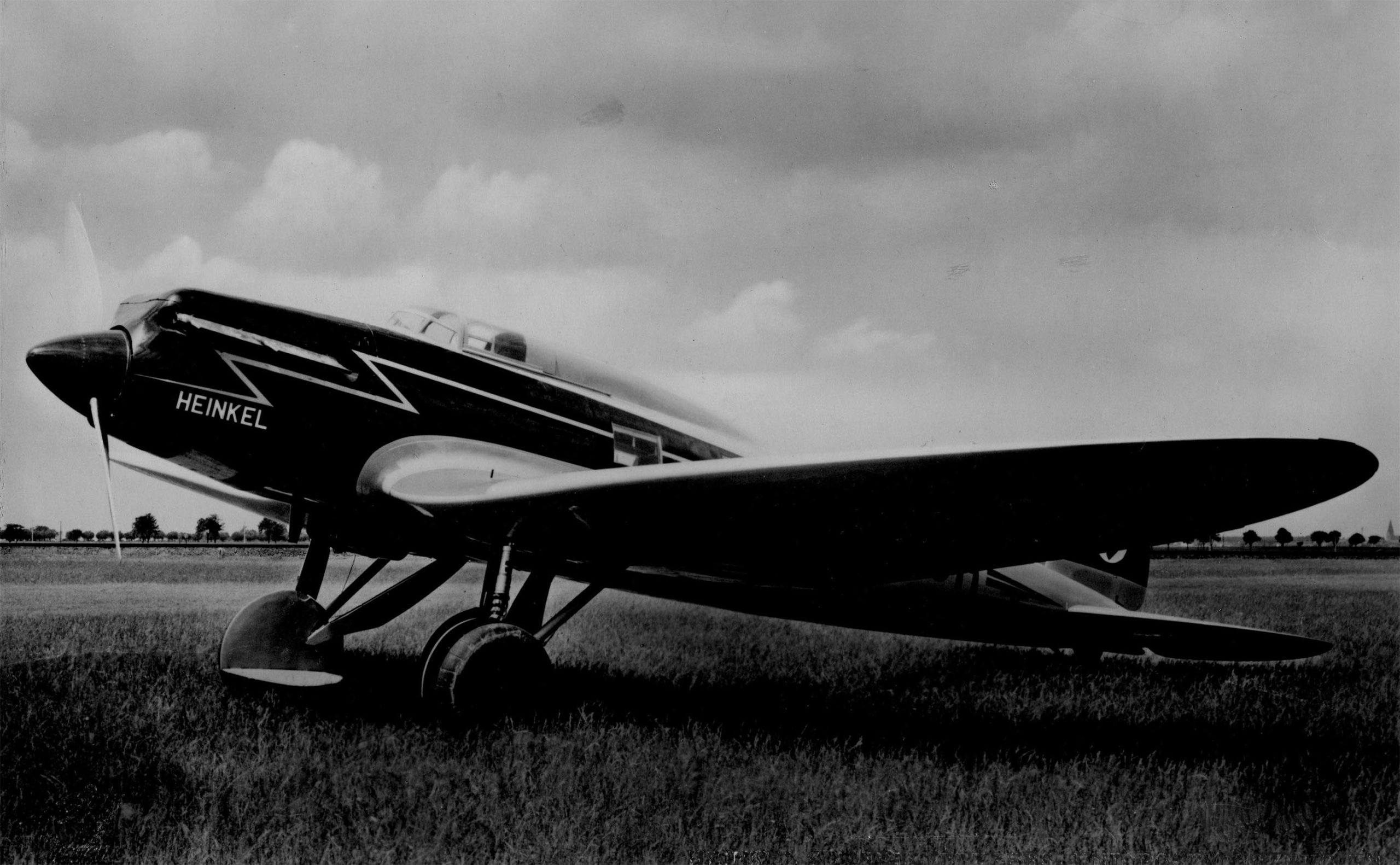

The Heinkel He70 was designed as a high speed mailplane for Lufthansa and first flew in 1932. It was designed for low drag, with an aerodynamically efficient elliptical wing with flush rivets, retractable undercarriage and a small cooling radiator using glycol as the cooling fluid. Most of the 324 examples built were used however by the Luftwaffe, initially as a high-speed reconnaissance aircraft, and later as more specialised aircraft became available, as a liaison and courier aircraft.

The design was scaled up to become the He111 bomber, the most numerous WW2 German bomber, and scaled down to become the He112, an unsuccessful competitor to the Messerschmitt Bf109. Examples were used by both the Hungarian air force and the Spanish air force, the last of the Spanish aircraft serving until the mid 1950’s.

This title contains two Luftwaffe technical manuals for the He70F, a comprehensive technical manual and a brief operating manual, a manufacturer’s presentation on the type and a NACA descriptive circular. The files have been scanned from the original flight manuals and retain any colour pages.



This title contains:

  • Luftwaffe Entwurf Eines Flugzeug-Handbuches (Comprehensive Technical Manual) for the Heinkel He70F, document L Dv. 316 dated August 1937 with approx. 560 pages. (In the German language.)
  • Luftwaffe KurzBetreibsanleitung (Brief Operating Instructions) for the Heinkel He70F, document L.(Luft).T.2248-1 dated Nov 1940 with approx. 50 pages. (In the German language.)
  • Manufacturer’s Presentation/Brochure for the Heinkel “Schnellflugzeuge” He70, undated but late 1930’s with approx. 53 pages. (In the German language.)
  • NACA Aircraft Circular No 183 covering the Heinkel He70, dated August 1933 with approx. 9 pages. (In the English language.)
